Description
1. MCB is for non-professional operation by those untrained, and no maintenance is required
2. Satisfying conditions and applications as mentioned above,MCB with “ON-OFF” indicating device is considered suitable for isolation function.
3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.
4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.
1.Protection against both overload and short circuit
2.Contact position indication
3.Applicable to terminal and pin/fork type Busbar connection
4.Easy mounting onto 35mm DIN rail

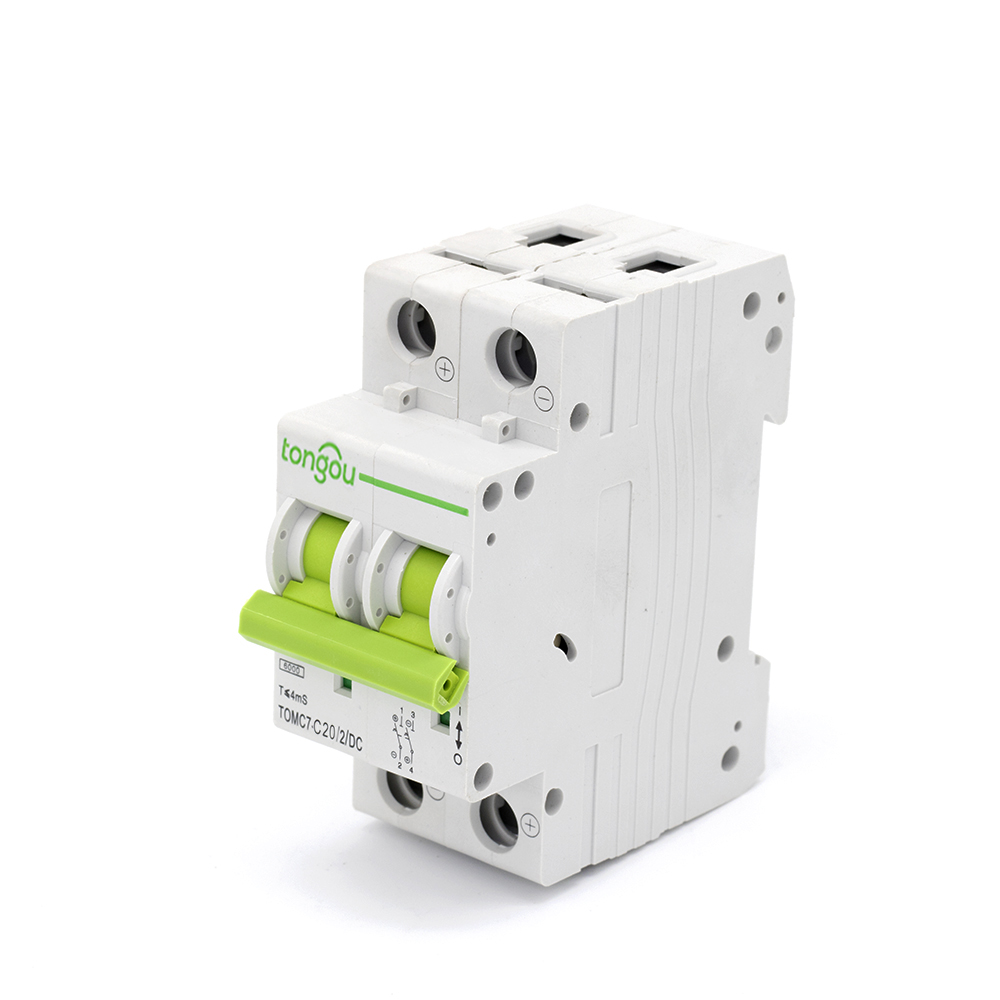

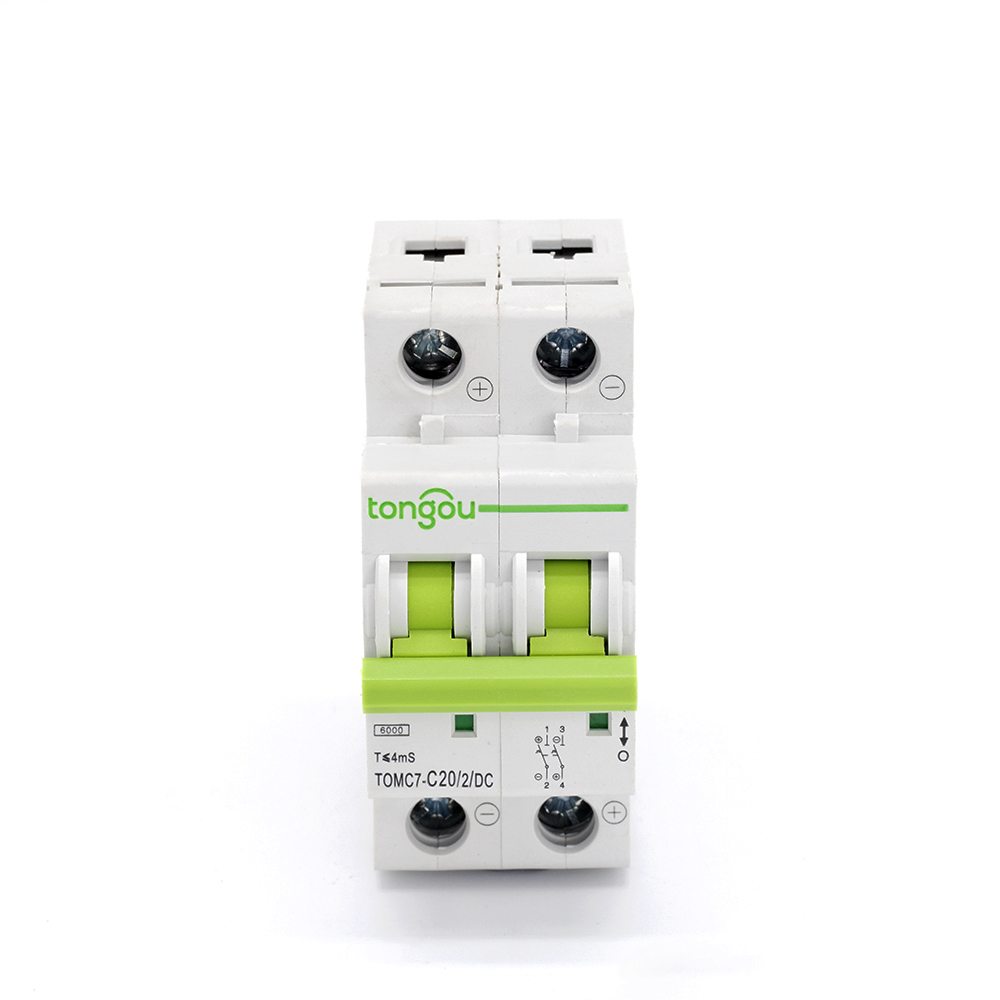

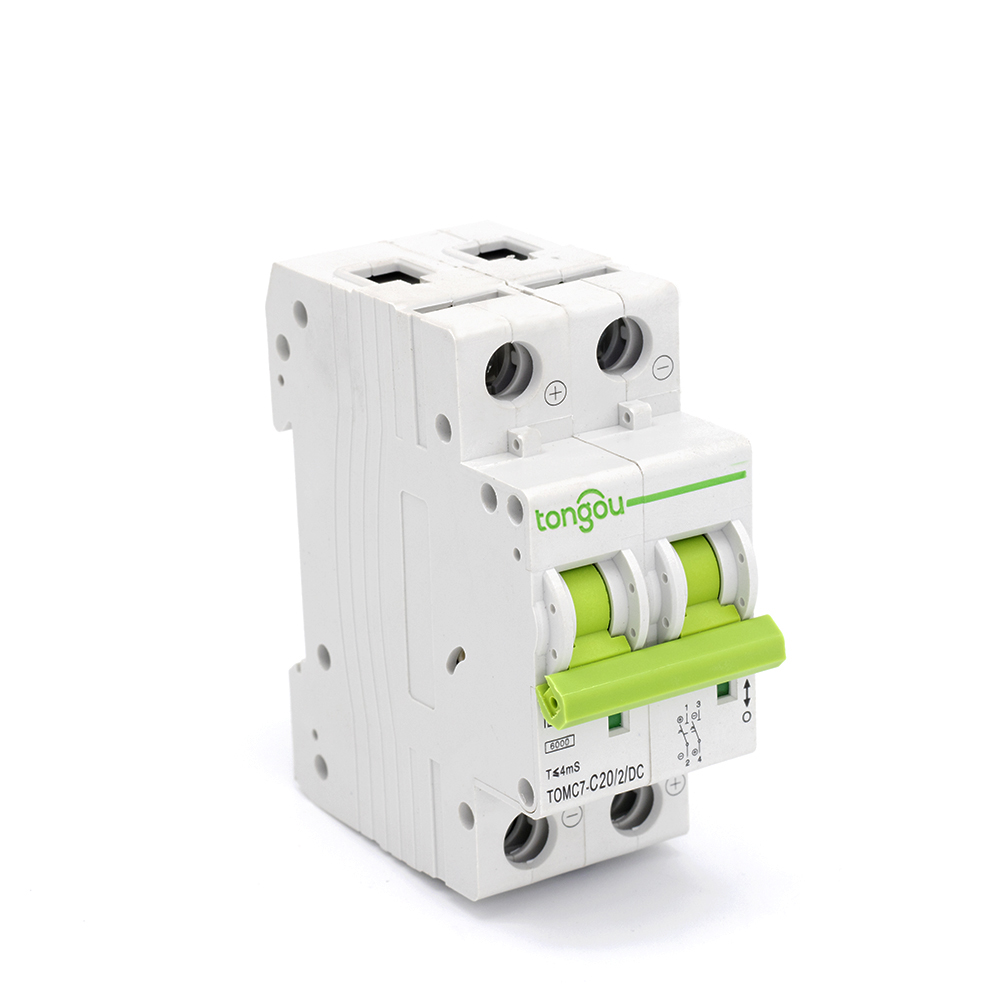

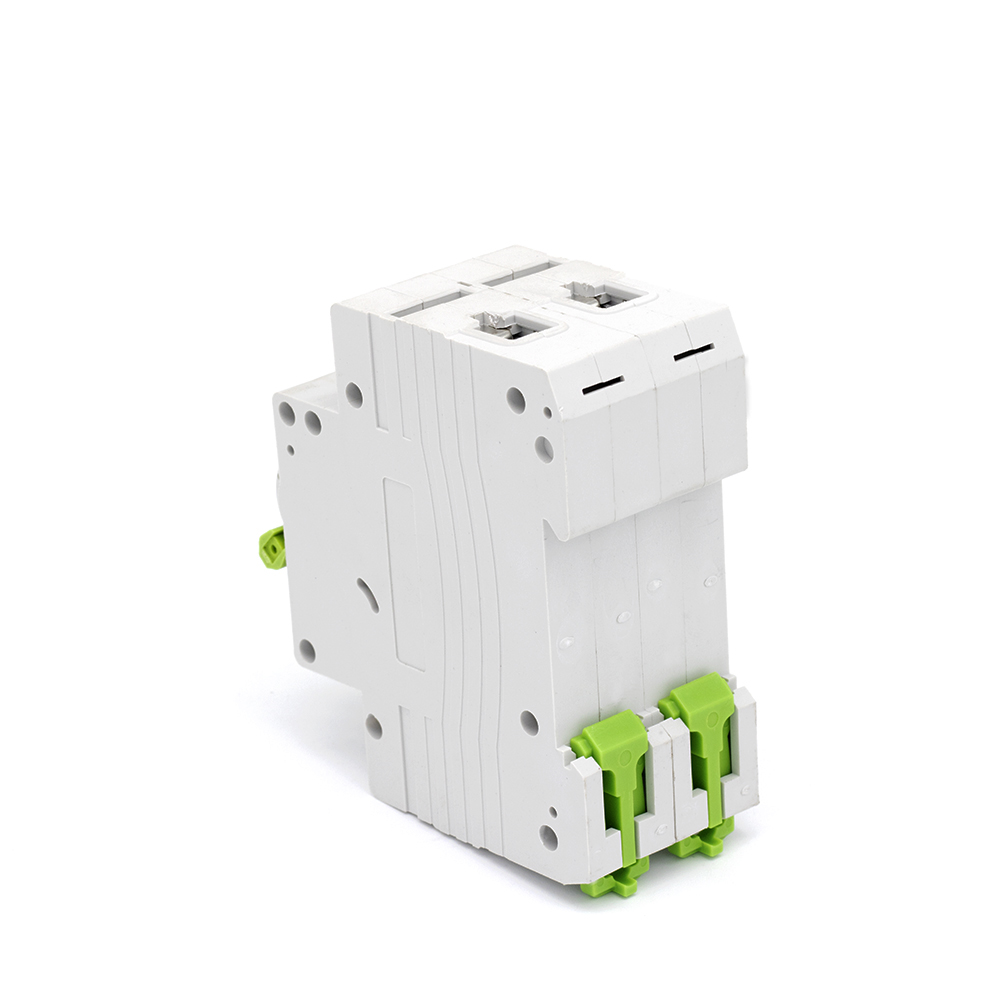

| Имя продукта | TOMC7-63 |
| Поле | 2 |
| Номинальное напряжение | DC |
| Номинальный ток (A) | 20 |
| Кривая отключения | B C D |
| Номинальная мощность короткого замыкания (lcn) | 6KA |
| Номинальная частота | 50/60Hz |
| Класс ограничения энергии | 3 |
| Номинальное импульсное выдерживаемое напряжение: | 6.2kV |
| Электро-механическая выносливость | ≥ 6000 |
| Contact индикатор положения | |
| Мощность подключения | Винтовая клемма / Стопорная клемма с зажимом |
| Мощность подключения | Жесткий проводник до 25 мм² |
| Момент затяжки | 2.0Nm |
| Установка | На симметричной DIN- рейке 35 мм / монтажной панели |
